Photovoltaic
Industry Background & Trends
The Unstoppable Growth of Solar
Solar energy has emerged as a dominant renewable energy source, with its costs rapidly decreasing and global installed capacity growing exponentially. As the world shifts towards clean energy, the demand for solar power continues to rise. Distributed solar PV systems and large-scale ground-mounted plants are leading the way, making solar power accessible to both residential and industrial sectors.
The global solar energy market has experienced a compound annual growth rate (CAGR) of over 20% in recent years, and it is expected to maintain strong growth throughout the next decade. In 2024 alone, solar energy accounted for nearly 10% of global electricity generation.
By 2030, it is estimated that the total installed capacity will exceed 2,500 GW, providing enough energy to power billions of homes worldwide. The increasing adoption of solar energy, along with advancements in technology, continues to accelerate the global transition to a sustainable energy future.
Core Challenges in PV Inverter Design
Designing high-efficiency and safe photovoltaic (PV) inverters comes with several challenges that must be addressed to ensure optimal performance and compliance with safety standards. The three main challenges in PV inverter design are
MPPT algorithms are crucial in maximizing the energy harvested from solar panels. The precision of current measurement is essential for tracking the maximum power point (MPP) accurately. A small error in tracking can lead to significant energy losses, making high-speed and precise current sensing a key component in inverter design.
Ensuring the safety of the inverter system is vital. Ground Fault Detection (GFDI) is necessary to prevent dangerous leakage currents that could result in electric shocks or fires. Additionally, insulation degradation monitoring is required to meet compliance standards such as UL and IEC, preventing hazardous voltages on the DC side of the system.
PV inverters are often exposed to extreme outdoor conditions such as high temperatures, humidity, and lightning surges. To ensure reliable operation over many years, inverters must be designed with components that can withstand harsh environmental factors without compromising performance.
Magtron's Solution for PV Inverters

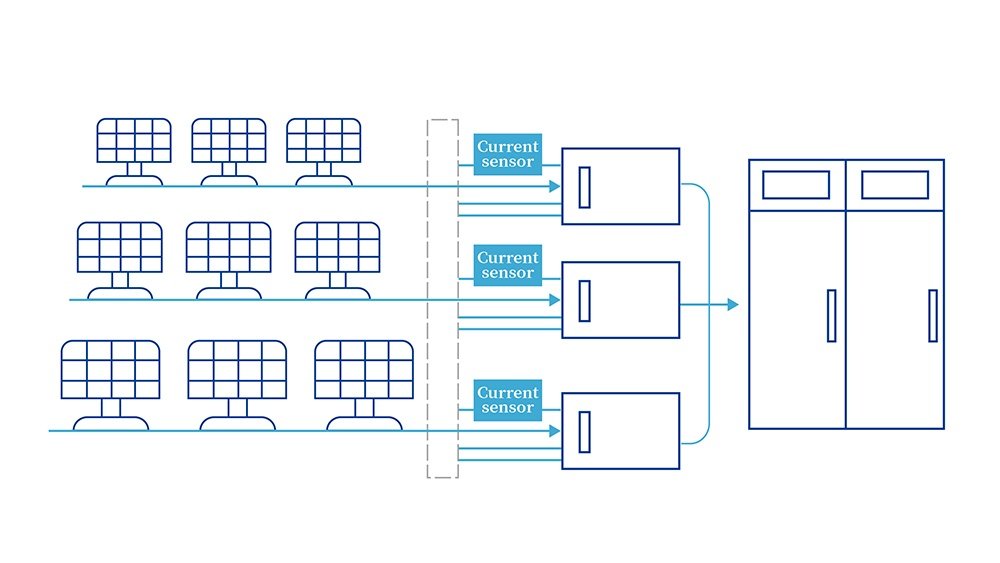

Precision Current Sensing for MPPT
iFluxgate® / Hall Sensors: Provide the high-speed, accurate current feedback required by the MPPT algorithm to constantly track the maximum power point, boosting energy yield.
Ground Fault Detection
Analog RCMU: Monitors for hazardous DC leakage currents on the PV array, enabling rapid shutdown to comply with GFDI requirements and ensure safety.
DC-Side Switching
HVDC Contactor: Safely disconnects the PV array from the inverter for maintenance or in response to a fault, reliably extinguishing the DC arc.
Recommended Product Matrix
Current Sensing
High-Voltage Switching
Electrical Safety
Type B RCMUs and integrated RCD modules for complete AC/DC leakage current protection
